Hardened Steel Gears
Extreme Torque and Excellent Speed
CNC Aluminium Case
Two Ball Bearings
Support High Voltage 8.4V
Programmable via Programming Card

Specification

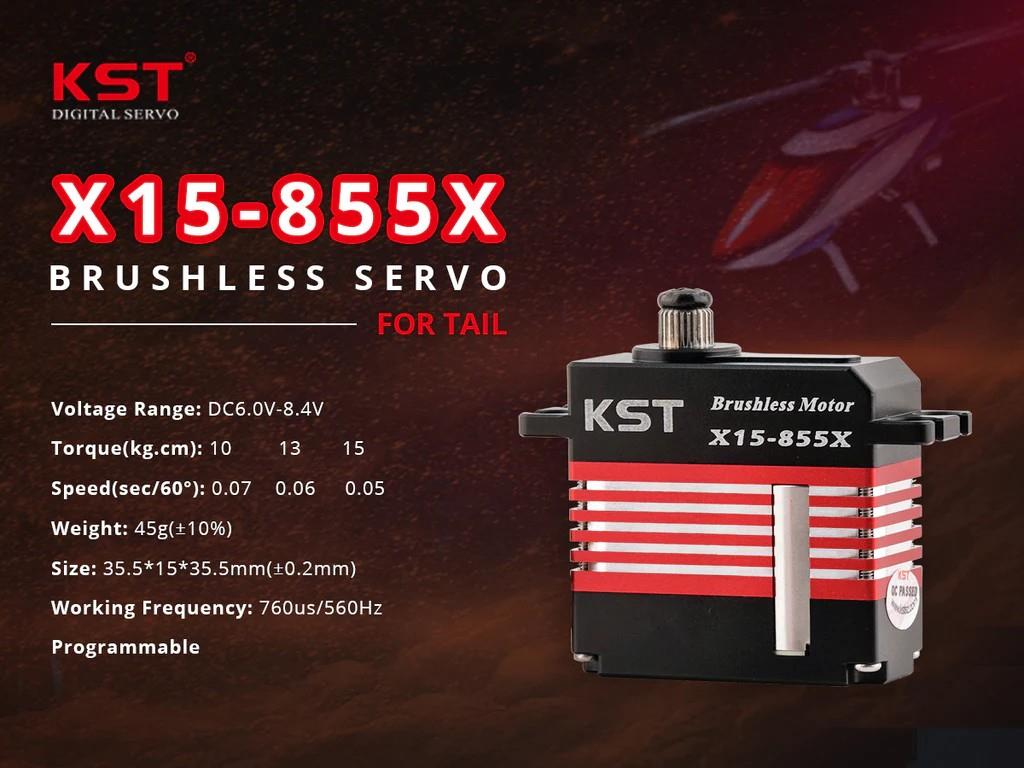

Item: X15-855X Tail Servo
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Working Frequency: 760us/560Hz
Temperature Range: -10℃……+65℃
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2 Ball Bearings
Case Dimensions: 35.5mm*15mm*35.5mm±0.2mm
Torque: 1.0N.m@6.0V, 1.3N.m@7.4V, 1.5N.m@8.4V
Speed: 0.07sec/60°@6.0V, 0.06sec/60°@7.4V, 0.05sec/60°@8.4V
PWM Command Interface
Weight: 45g±10%
